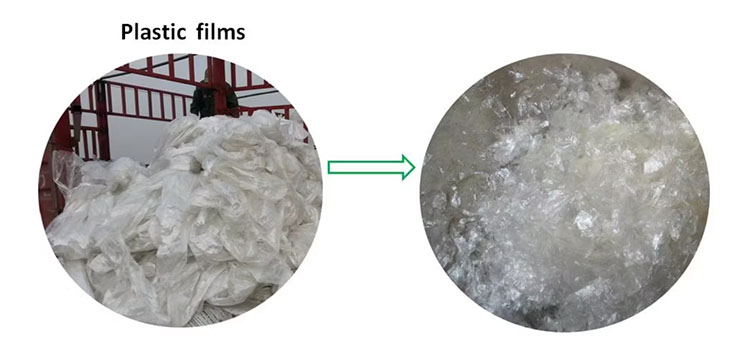

A pp pe plastic flakes pelletizing line is responsible of transforming PP HDPE LDPE diry plastic especially oil container, bottles with label and soft film bag into clean and dry flakes (moisture content is below 2%
) for subsequent plastic pelletizing process through a sequence of steps like sorting,crushing,washing(cold and hot washing),drying.
Advantages of PP PE Pelletizing Line
The pp pe plastic pelletizing line can handle a complete PP and PE plastic pelletizing process from first metal cut to final painting,and we finished quality inspection after every process in our own factory.
Parameters of PP PE Pelletizing Line
Our pe pp pelletizing machine’s parameters are listed as follows:

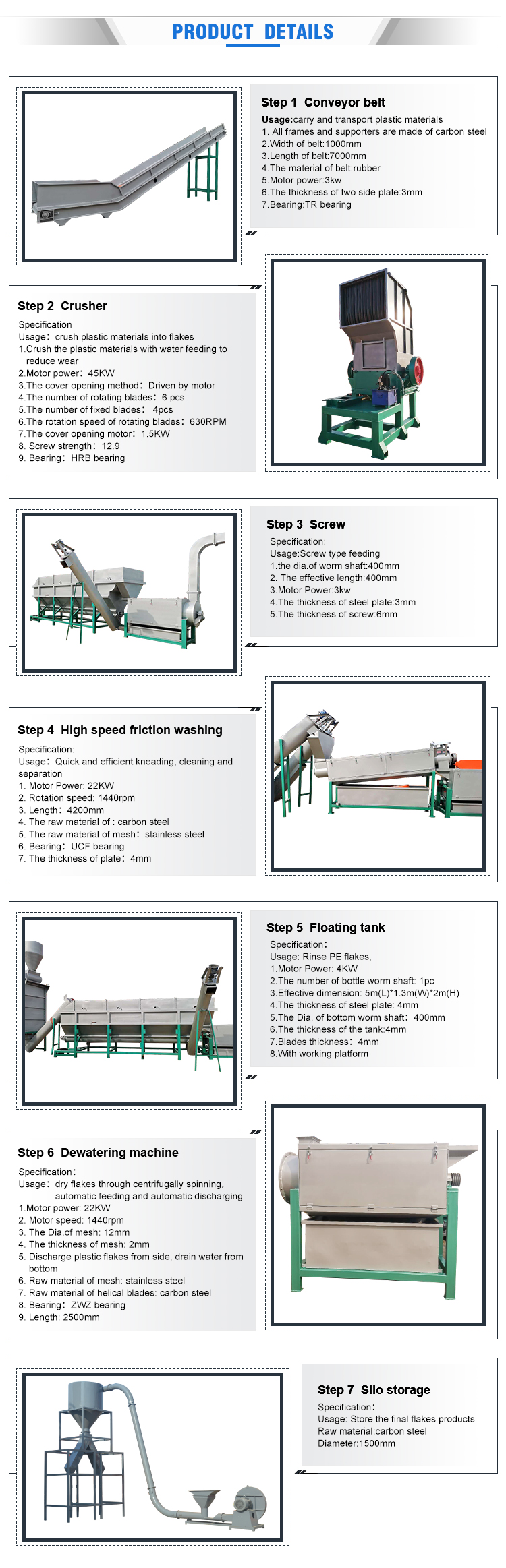

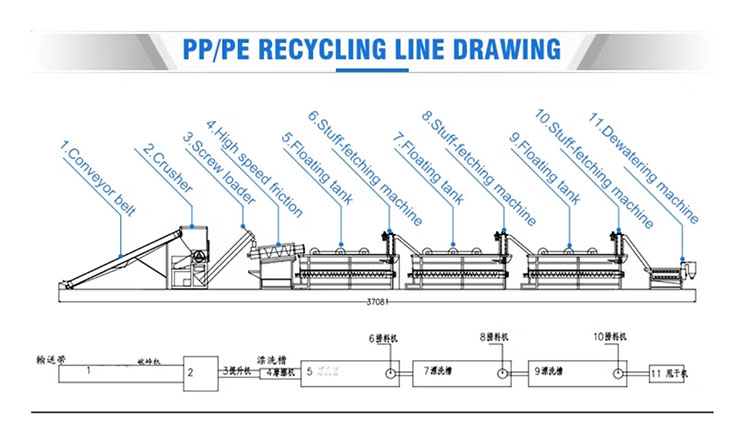

SN: | Item name: | Function |
1 | Bale Opener machine | Open the bottle bale |
2 | Conveyor belt | Feeding material |
3 | Trommel screen | Remove the sand, rocks and other dirty from the bottles |
4 | Conveyor | Feeding material |
5 | Manual sorting table | Sorting out different plastic |
6 | Conveyor belt | Feeding material |
7 | Crusher | Crushing the bottles into flakes |
8 | Screw loader | Conveying material |
9 | 1st Auto floating washing tank | Washing out the Floating caps, rings and dirty |
10 | Screw loader | Conveying material |
11 | 2nd Auto floating washing tank | Washing out the Floating caps, rings and dirty |
12 | Screw loader | Conveying material |
13 | Hot washing tank | With Hot water washing and chemical to remove glue, oil, and dirty |
14 | Screw loader | Conveying material |
15 | High speed friction washer | With high speed Friction Washing out dirty and Chemical water from flakes |
16 | 3rd Auto floating washing tank | Washing out floating caps, rings and dirty, |
17 | Screw loader | Conveying material |
18 | 4th Auto floating washing tank | Washing out the Floating caps, rings and dirty |
19 | Screw loader | Conveying material |
20 | Horizontal dewatering machine | Drying the flakes |
21 | Hot air drying system | Drying the flakes again |
22 | Zig-Zag label separator | Remove the dust and small remain labels |
23 | Automatic packing system | Collecting the flakes |
24 | Electric control panel | Used to control the whole Line |
25 | Free spare parts |
|
PP PE bottle washing/recycling line/machine can be customized according to customer requests. |
