Competive Price 500-6000kg/h PET Sheet & Bottle Washing Line for Plastic Recycling

PET sheet & bottle washing line is a dual-purpose washing line that is designed to process various forms of PET plastic waste like PET Sheet and PET Bottle.
Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

  • 500

  • Haorui

Previous:
Next:
Pet Bottle Washing Recycling Line PET sheet & bottle washing line Sheet & Bottle Recycling Machine plastic sheet recycling equipment
Product Description

Competive Price 500-6000kg/h PET Sheet & Bottle Washing Line for Plastic Recycling


Product Description:

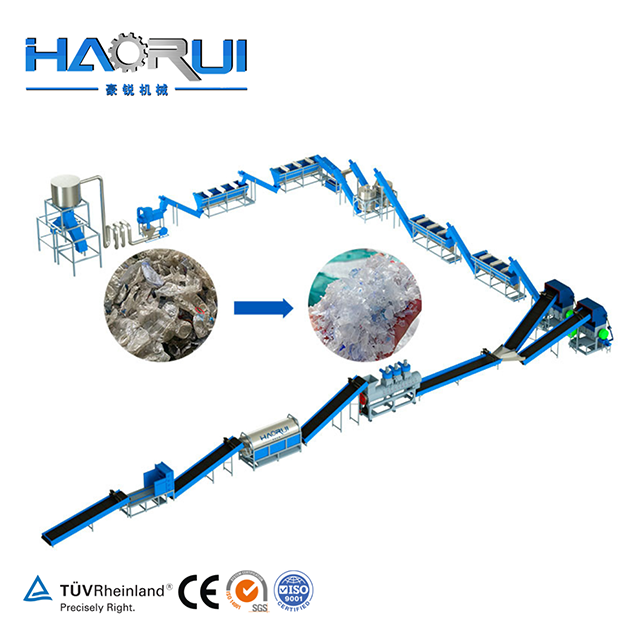

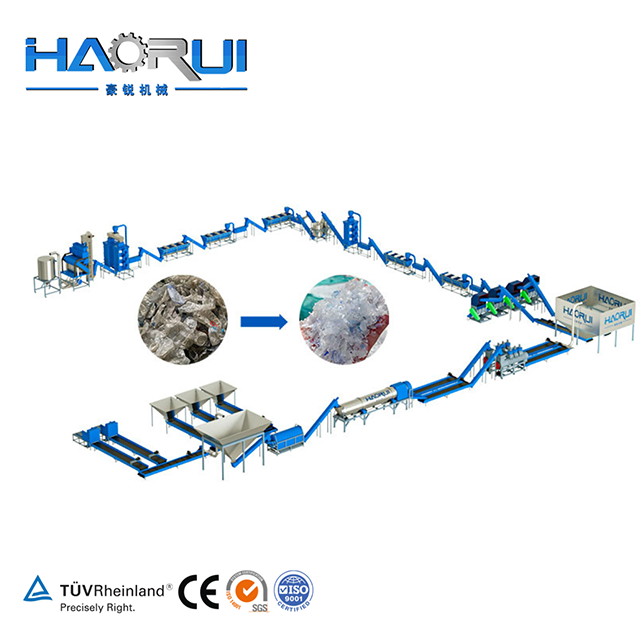

PET sheet & bottle washing line is a dual-purpose washing line that is designed to process various forms of PET plastic waste like PET Sheet and PET Bottle.PET Sheet are manufactured from post-consumer PET plastic, predominantly sourced from recycled beverage bottles and packaging materials.This washing line consists of a series of machine and equipment.The equipment list is as follows:Bottle pre-washing system&Trommel screen,Lable remover,Crusher,Floating tank,Hot washer,High speed friction washer,Dewatering machine,Zig zag label separator.


Parameters for PET Sheet &PET Bottle Washing Recycling Line:


SN:

Iterm name:

Function

1

Bale Opener machine

Feeding the material equally

2

Conveyor

Feeding material

3

Trommel and bottle prewashing system

Remove the sand, rocks and other dirty from the bottles

4

Conveyor

Feeding material

5

Label Remover

Remove labels from Bottles

6

Manual sorting table

Sorting out remain labels, remain different bottles and so on

7

Crusher

Crushing the bottles into flakes

8

Screw Conveyor

Conveying material

9

1st Auto floating washing tank

Washing out the Floating caps, rings and dirty

10

1st High Speed Friction washer

With high speed Friction Washing out dirty

11

Hot washing tank

With Hot water washing and chemical to remove glue, oil, and dirty

12

Screw Conveyor

Conveying material

13

2nd High Speed Friction washer

With high speed Friction Washing out dirty and Chemical water from flakes

14

2nd Auto floating washing tank

Washing out chemicals, floating caps, rings and dirty

15

3rd Auto floating washing tank

Washing out floating caps, rings and dirty

16

Horizontal Dewatering Machine

Remove the humidity from the flakes

17

Hot Air Drying system

Drying the flakes

18

Zig-Zag Air Classifier

Remove the fin dust and small labels

19

Flakes color sorter machine

20

Flakes polymer sorter machine

21

Automatic packing system

Collecting the flakes

22

Electrial contol panel

Used to control the whole Line

23

Free spare parts

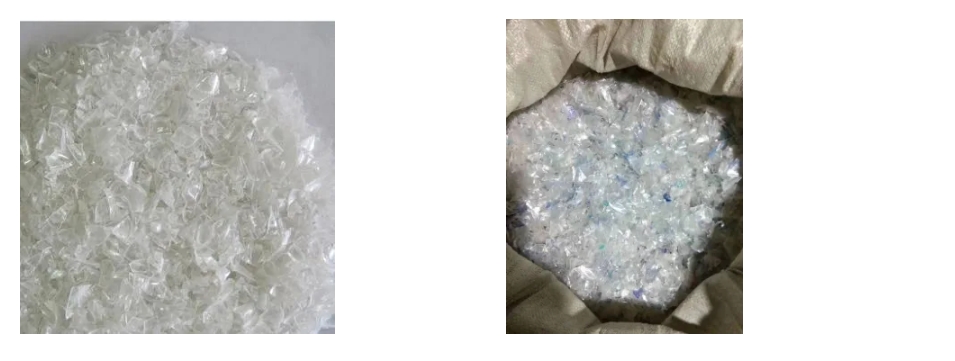

Final Flakes:


Final flakes Produced by Sheet & Bottle Recycling Machine


Final flakes Produced by Sheet & Bottle Recycling Machine


Product Display:

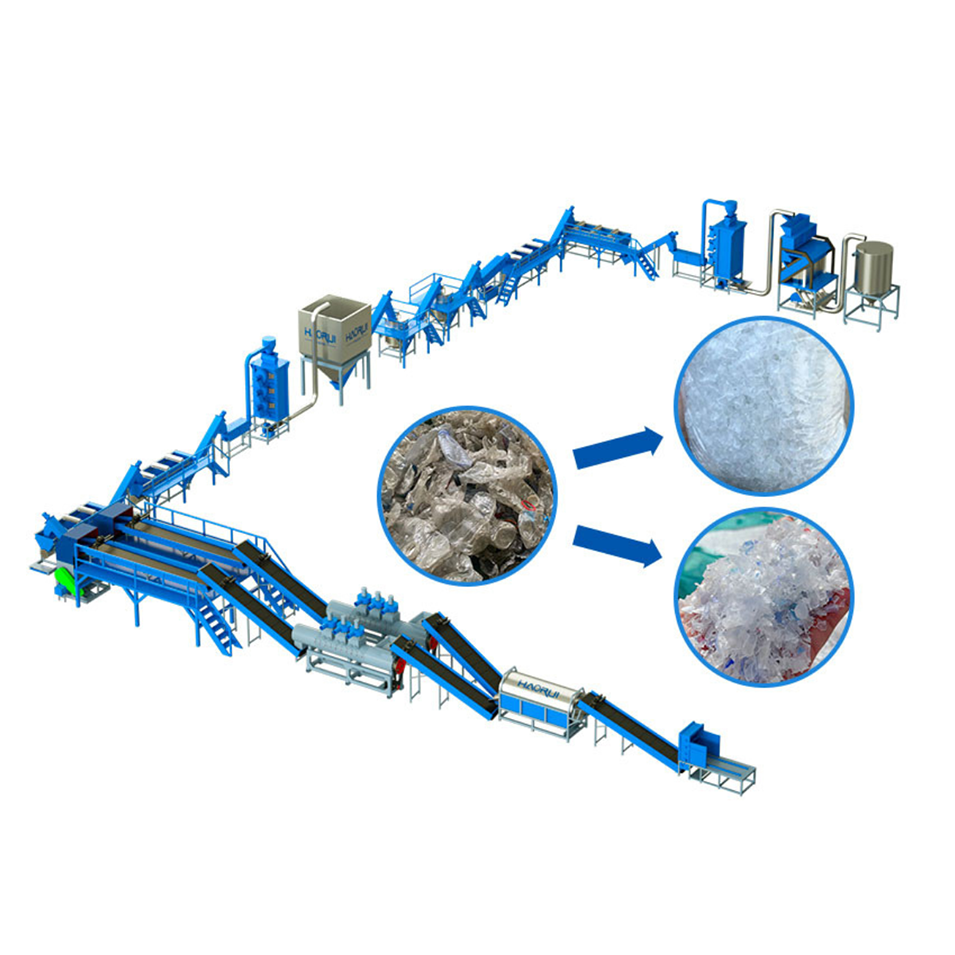

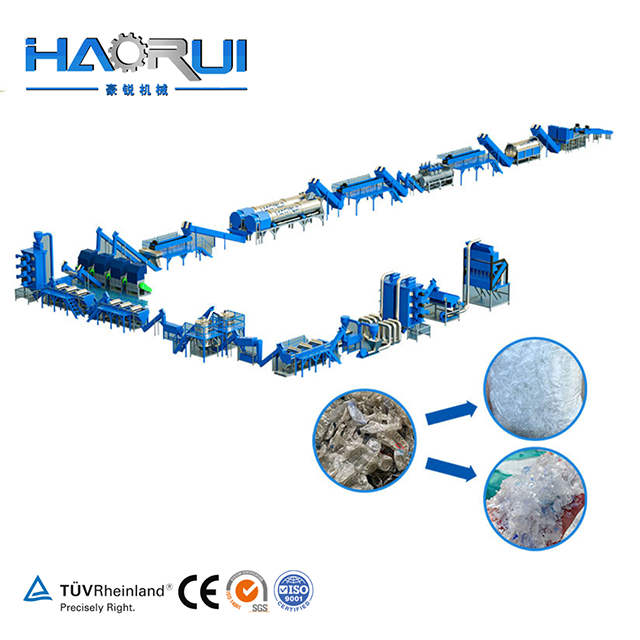

Plastic Sheet Recycling Equipment


Plastic Sheet Recycling Equipment
