Good Price Food Grade B2B PET Scrap Bottle Washing Line Plant

Equipments list of Food Grade B2B PET Bottle Washing Recycling Line

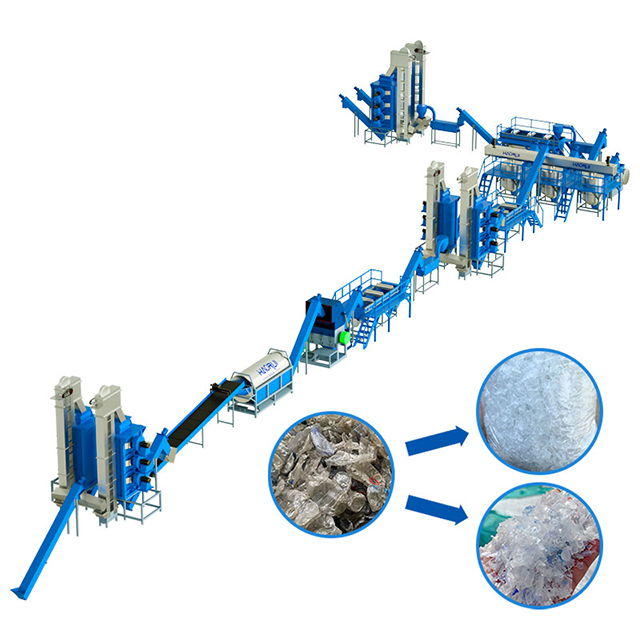

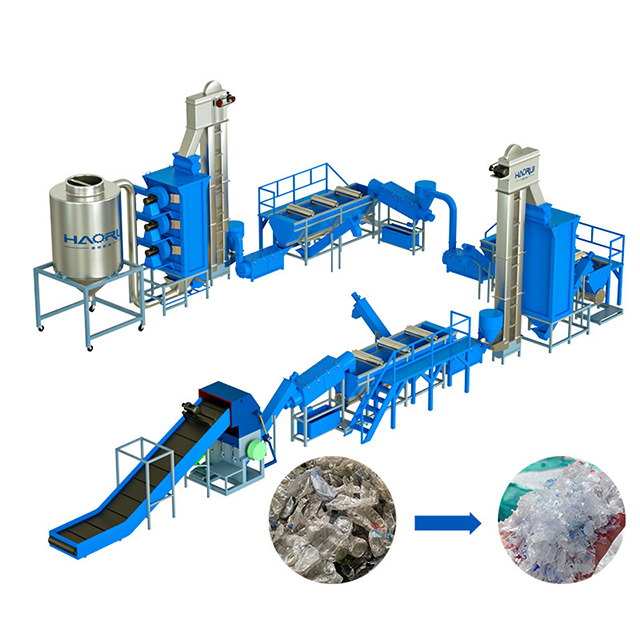

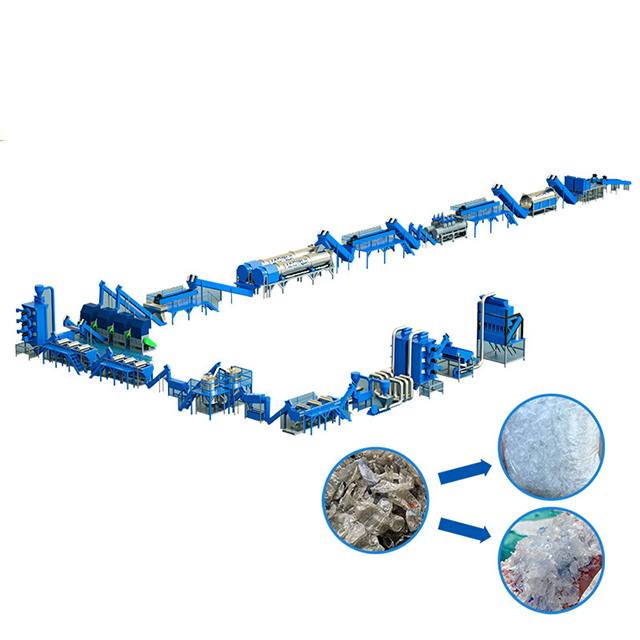

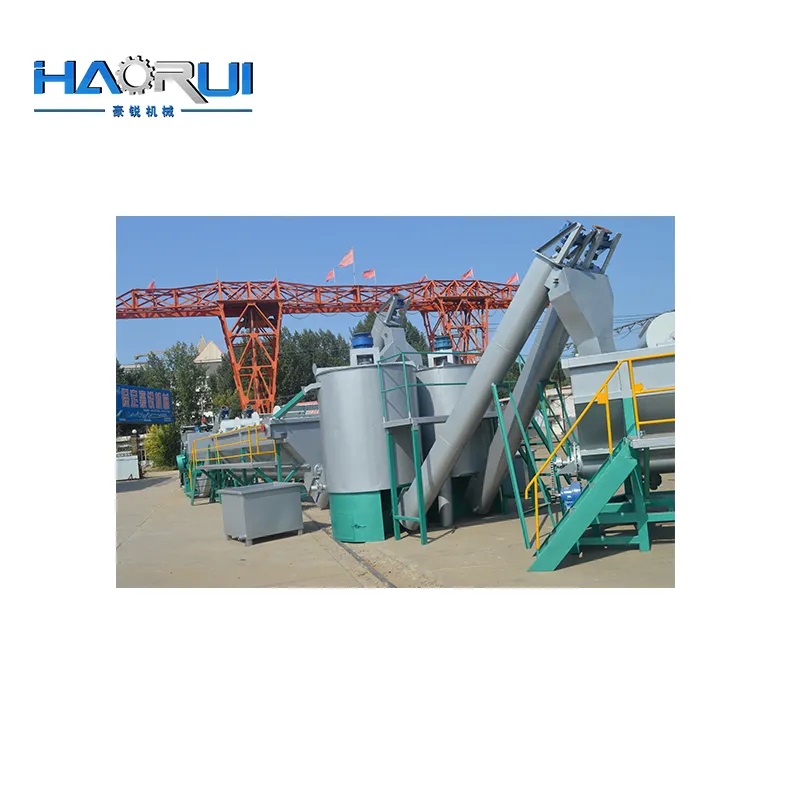

A food grade B2B PET bottle washing line consists mainly of a series of machine and equipment including bale opener,screw loader,trommel screen,pre-washer,conveyor belt,label remover machine,sorting platform,plastic crusher machine,horizontal packing auger,floating tank,dewatering machine,hot washer,high speed friction washing machine,wind conveyor,pipe dryer,paper/pvc/label seperation,silo storage and electric panel.The usage and specification of these machine and equipment are as follows:

Labels Remover machine:

Usage：A label remover machine is used for removing labels of the PET bottles

1. Motor Power: 37Kw/level 6

2. Raw material of blades：cemented carbide

3. Labels suction motor：5.5kw×1& 7.5kw×2

4. The length of shaft:6000mm

5. The Dia.of shaft:900mm

6. The thickness of internal wall: 10mm

7. Labels scraping motor：1.5kw

Plastic Crusher machine:

Usage：A plastic crusher machine is responsible for crushing plastic materials into flakes

1. Crush the plastic materials with water feeding to reduce wear

2. Motor power：55KW

3. The cover opening method：Driven by motor

4. The number of rotating blades：6pcs

5. The number of fixed blades：4pcs

6. The rotation speed of rotating blades：630RPM

7. The cover opening motor：5KW

8. Screw strength：12.9

9. Bearing：HRB bearing

10.This plastic crusher machine is equipped with forced feeding devices

Forced Feeding Devices：

1. Pressing rotors：2sets of rotors of vertical design

2. Motor power：2kw

3. Rotors design：Spiral shape

4. Raw material of rotors：carbon steel

Floating Rinsing Washing Tank

Usage: It can rinse PP\PE\PET flakes,automatically separate bottles caps and other floating debris from the PP\PE\PET flakes,effectively separate varieties of silt and paper scraps.

1. Motor Power: 4KW

2. Roller wheel motor power: 2.2kw

3. The number of roller wheels:4 pcs

4. The number of bottle worm shaft: 1pc

5. Effective dimension:6m(L)*1.4m(W)*2m(H)

6. The thickness of steel plate:4mm

7. The Dia. of bottom worm shaft：450mm

8. The thickness of bottom helical blades：5mm

9. It is equipped with operation platform, with bottles caps collecting box

Hot Washer

Usage：It is used in heating and washing the PET flakes

1. Heating mode: By gas

2. Motor power: 5kW

3. Water temperature: Around 90℃

4. Cylinder size (× H): 1.8 m×3m

5. Raw material: carbon steel

6. Plate thickness：4mm

7. It has double layers with insulation

8. It is equipped with operation platform

9.It consists of a water tank to collect floating plastic materials,such as PE label,etc. The treated water could be recycled.

High-speed friction cleaner

Usage：It can quickly and efficiently knead, cleani and separation.

1. Motor Power:15KW

2. Rotation speed: 1440rpm

3. Length：3000mm

4. The raw material of : carbon steel

5. The raw material of mesh：stainless steel

6. Bearing：UCF bearing

7. The thickness of plate：4mm

Dewatering Machine

Usage：It is responsible for drying flakes through centrifugally spinning,automatic feeding and automatic discharging.

1.Motor power: 22KW

2. Motor speed: 1440rpm

3. The Dia.of mesh: 1.8mm

4. The thickness of mesh: 2mm

5. Discharge plastic flakes from side, drain water from bottom

6. Raw material of mesh:stainless steel

7. Raw material of helical blades:carbon steel

8. Bearing：ZWZ bearing

9. Length: 2000mm

Labels Separator

Usage：Separate materials with different weights to remove those impurities out of PET flakes

1. Automatic butterfly valve power:1.5kw

2. Blower power: 2.2kw

3. Blower speed: Frequency controlled

4. The number of blower: 3pcs

Storage Silo

It is used for collecting those cleaned and dried plastic flakes in bags for convenient transportation.

It features high automation,low energy consumption,high efficiency and clean washing.

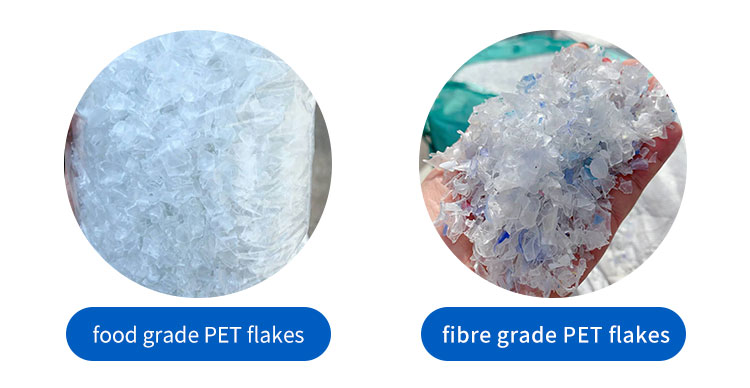

The entire equipment facilitates transforming waste PET bottles into recyclable PET bottle pieces effective.
