500kg/h Pp Pe Film Washing Machine for Plastic Recyling Line
Product Description:
PP PE film woven bag washer is responsible for the recycling of PE film such as agricultural PE/PP films sticking lots of soil and dirty.This pp pe film washing line consists of a series of machine and equipment including conveyor belt,plastic crusher machine,2 sets screw,floating tank,friction washer,floating tank,screw loader,dewatering machine,storage silo.The main process components of the washing line include crushing,washing and dewatering.
The process step is as follows:
Crushing:
The plastic crusher machine can crush the plastic film into flakes.
Washing:
The friction washer can knead,clean,and seperate the flakes quickly and efficiently.Then the floating tank can rinse the flakes.
Dewatering:
The dewater machine can dry the flakes through centrifugally springing,automatic feeding and automatic discharging
Parameters for Pp Pe Film Recycling Machine:
Machine | Model | Function | Capacity |
Conveyor Belt | 800 Type | Transport the plastic waste to crusher | 500kg/h |
Plastic Crusher machine | 800 Type | Crushing the waste plstic into flakes | 500kg/h |
Screw |
| Transport the plastic flakes to floating tank | 500kg/h |
Floating Tank |
| Rinse plastic flakes | 500kg/h |
Screw |
| Transport the plastic flakes to friction washer | 500kg/h |
Friction Washer | 600 Type | Friction and washing the plastic flakes | 500kg/h |
Floating Tank |
| Floating washing plastic flakes | 500kg/h |
Screw Loader |
| Transport the plastic flakes to dewatering machine | 500kg/h |
Dewatering Machine | 600 Type | Dewatering from the washed plastic flakes |
|
Storage Silo |
| storage plastic flakes |
|
Product Display:

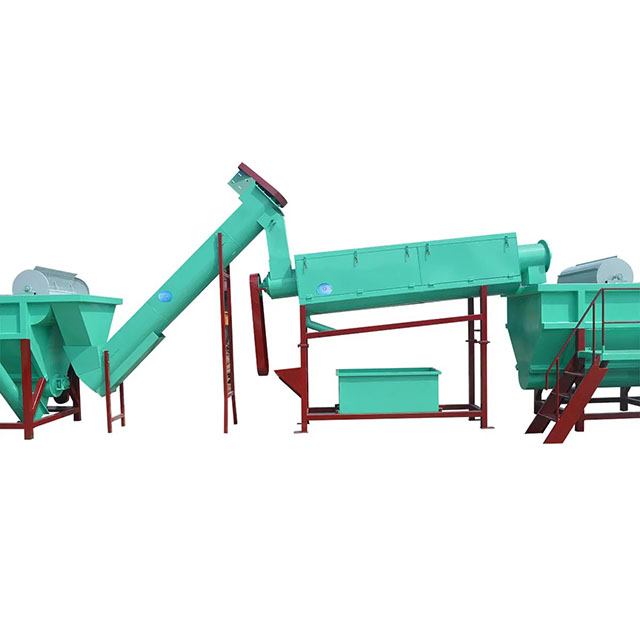

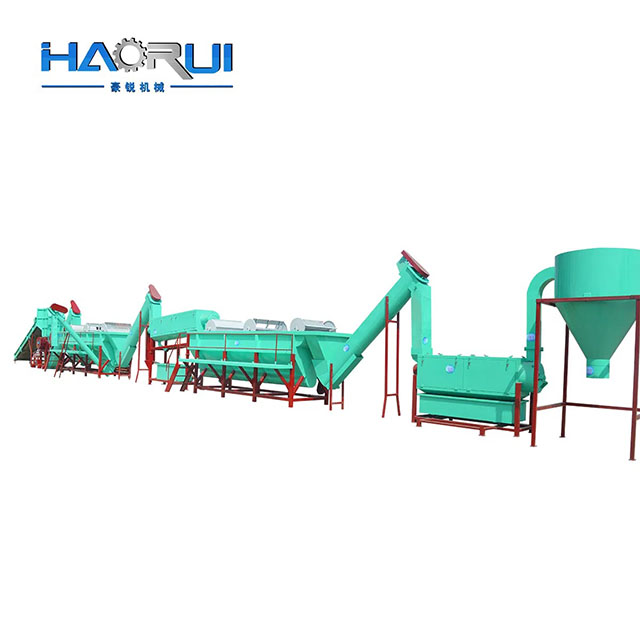

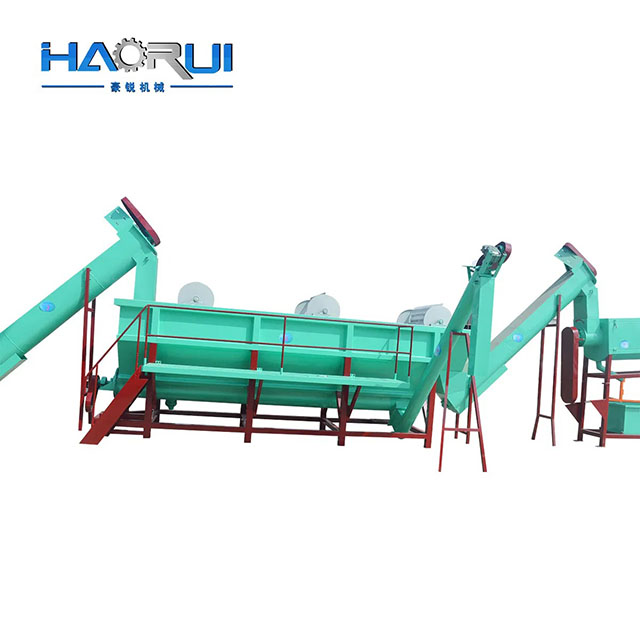

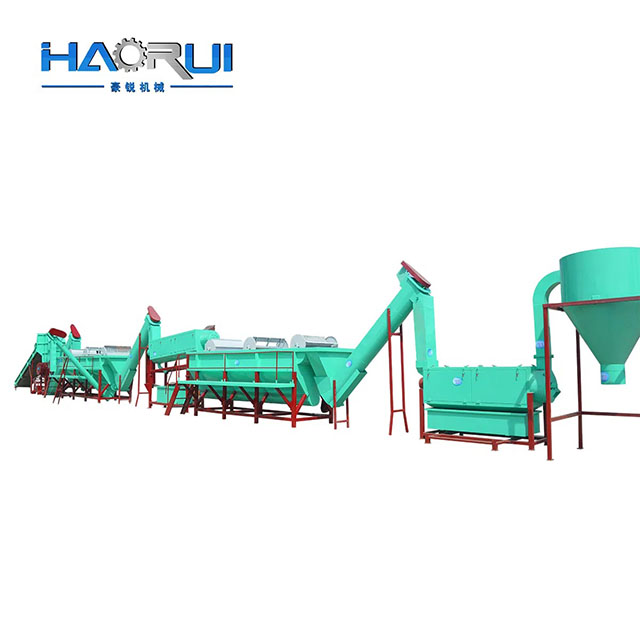

pe film washing machine
