Haorui

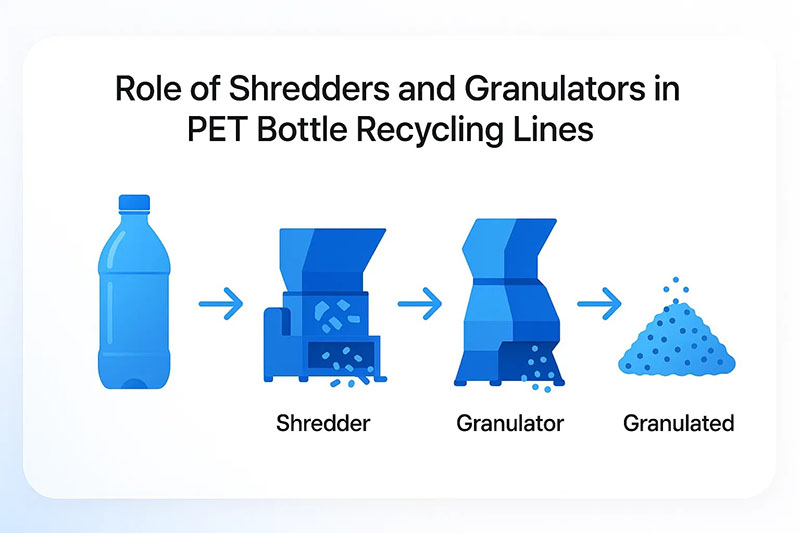

The main process components of the plastic recycling granulator machine include Shredder and granulator.The role of shredder is reducing the size of the raw materials to output the coarse PET flakes,whereas the role of granulator is reducing further the size of the coarse PET flakes to produce the finer, uniform flakes.Shredders and granulators are pivotal in size reduction, preparing the PET plastic bottles to facilitate efficient washing,cleaning and subsequent processing.
Model | Extruder | Screw diameter(mm) | L/D ratio | Power(kw) | Productivity(PE)(kg/h) | Productivity(PP)(kg/h) |
70 | 70/33 | Φ70 | 33:1 | 110 | 110-150 | 100-130 |
85 | 85/33 | Φ85 | 33:1 | 150 | 180-250 | 150-200 |
100 | 100/33 | Φ100 | 33:1 | 210 | 280-350 | 250-300 |
130 | 130/33 | Φ130 | 33:1 | 300 | 480-550 | 400-480 |
160 | 160/33 | Φ160 | 33:1 | 370 | 650-750 | 550-560 |
180 | 180/33 | Φ180 | 33:1 | 460 | 800-1000 | 750-850 |
Process Components for PET Pelletizing Line
PET Reprocessing Equipment
