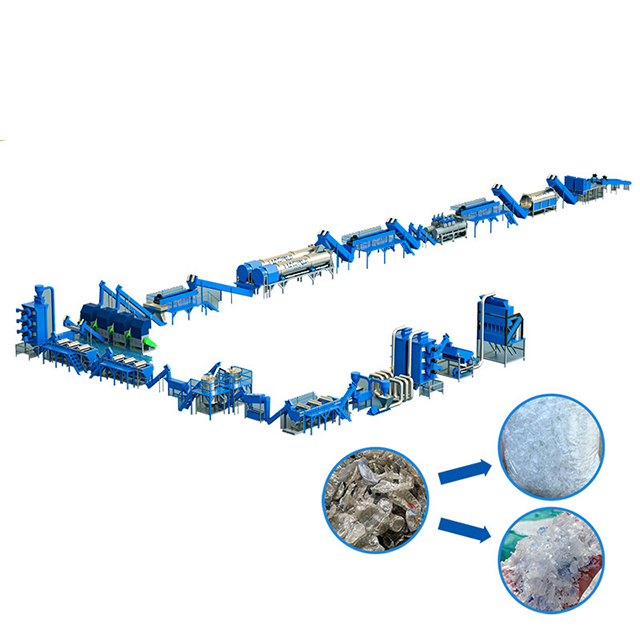

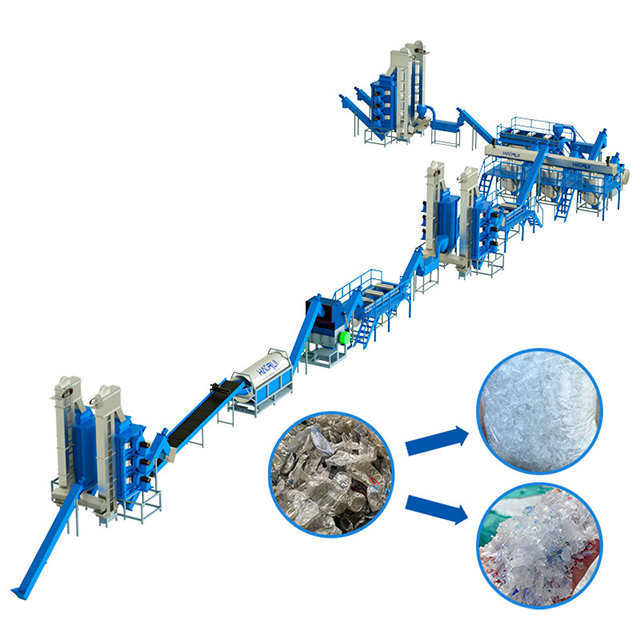

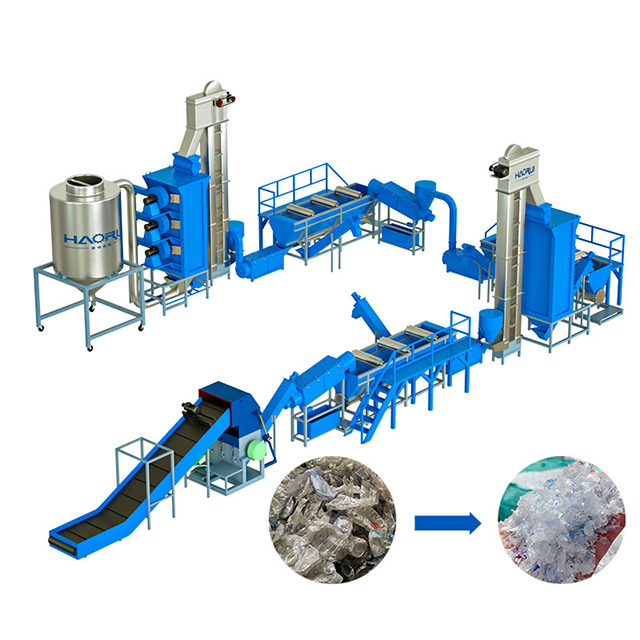

Food Grade B2B PET Bottle Washing Line for Plastic Recycling Plant

A food grade PET bottle washing recycling line is responsible for transforming the post consumer PET plastic bottles like water bottles into cleaned and dried plastic flakes that meet the international food safety standards refers to FDA.
Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

  • 6000

  • Haorui

Previous:
Next:
Pet Bottle Washing Recycling Line food grade b2b PET bottle washing line water bottle recycling machine
Product Description
Technical Parameters
Why Choose Us

Functions of Food Grade B2B PET Bottle Washing Line



A food grade PET bottle washing recycling line is responsible for transforming the post consumer PET plastic bottles like water bottles into cleaned and dried plastic flakes that meet the international food safety standards refers to FDA.



Process components of Food Grade B2B PET Bottle Washing Line


Process components of our food grade B2B PET bottle washing recycling line involves separating,crushing,washing and drying.



These process components of above washing recycling line ensure that the recycled PET flakes meet food-grade standards for reprocessing into new bottles or other food-contact packaging materials.

SPECIFICATIONS FOR PET RECYCLING WASHING LINE
NO. ITEM DESCRIPTION
01 Bale Breaker Break up the compressed bottle bale
02 Conveyor Belt Transport bottles to label remover
03 Label Remover Remove the labels on the bottle (label removing cleanliness higher than 98%)
04 Manual Sorting Platform According to workers' height, supply a suitable plate to pick out the left labels or some other impurities
05 Conveyor Belt Transport the bottles into crusher
06 Crusher Crush the bottles with water
07 Screw Loader Conveying the flakes into floating washing tank
08 Floating Rinsing Washing Tank Remove paper scraps, sand, labels out of flakes owing to different buoyancy in water
09 Screw Loader Conveying the flakes into hot washer
10 Hot Washer High temperature stirring washing with caustic soda. Water can be heated by steam or electric or coal around 90 degress
11 Screw Loader Conveying the flakes into friction cleaner
12 Friction Cleaner Scrubbing the flakes at hgih speed with water
13 Screw Loader Conveying the flakes into floating washing tank
14 Floating Rinsing Washing Tank Remove paper scraps, sand, labels out of flakes owing to different buoyancy in water
15 Screw Loader Conveying the flakes into floating dewatering machine
16 Dewatering Machine High speed centrifugal drying. Horizontal or Vertical dewatering machine
17 Wind Drier Electric heating wind drying.
18 Label Flakes Separator The last left impurities will be separated out of flakes by the blower fan
19 Storage Silo Store the final material
20 Electrical Control Cabinet Control the whole line

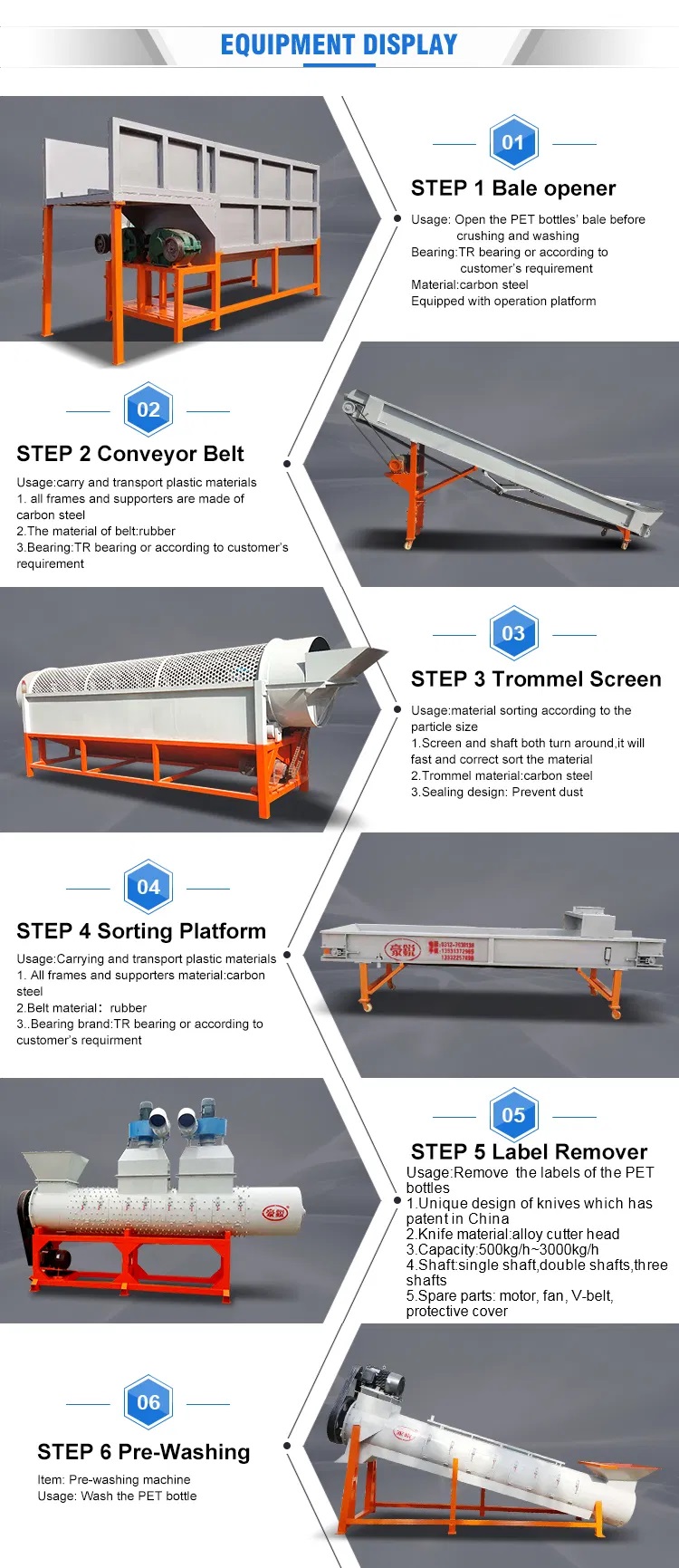

Haorui Plastic Recycling Machine Plant Bag Pet Bottle Flakes Washing Line

Processing Materials

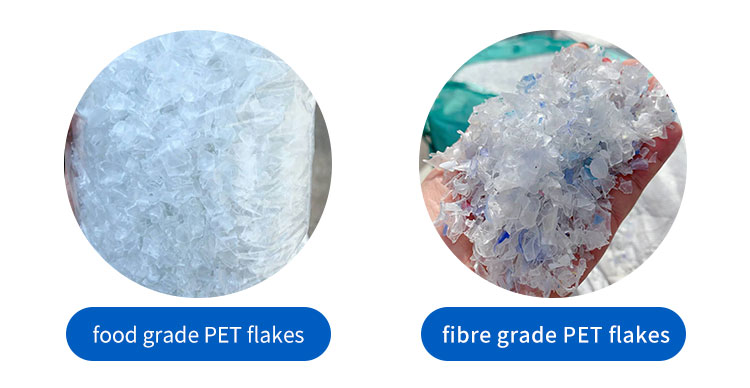

Effects of Output

Why Choose Us

Thirteen Patents and Certifications

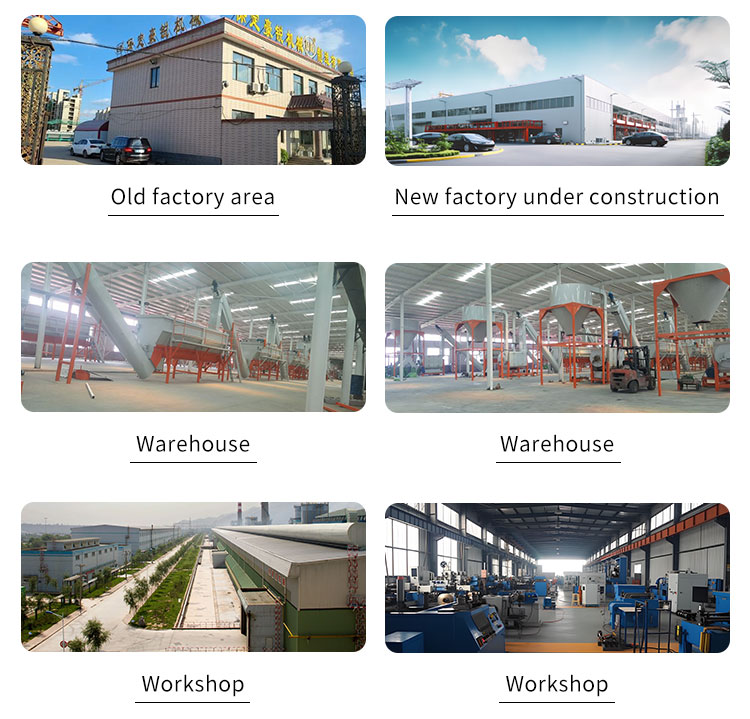

Factory Area

Product Description
Technical Parameters
Why Choose Us
