In a world increasingly aware of plastic pollution and sustainability, plastic bottle recycling has become one of the most effective ways to reduce environmental damage and create a circular economy. However, efficient recycling isn’t just about collecting used plastic bottles and melting them down. It involves a series of highly technical processes, one of which is often overlooked but critically important: label removal.
Labels on bottles may seem harmless, but they can severely impact the quality and efficiency of plastic recycling. That’s where a Label Remover Machine comes in—a specialized device designed to automatically and efficiently separate labels from plastic bottles before the washing and shredding stages.
What Is Plastic Bottle Recycling?
Plastic bottle recycling is the process of converting used plastic bottles—primarily made from PET (polyethylene terephthalate), PP (polypropylene), and PE (polyethylene)—into reusable raw materials. These materials can then be reintroduced into manufacturing to produce new plastic products such as textile fibers, packaging, automotive components, and household goods.
The recycling process typically includes the following steps:
Collection and Sorting – Bottles are collected from municipal waste, landfills, or sorting centers and separated by material and color.
Pre-treatment – Bottles are prepared for processing by compressing or pre-washing them.
Label Removal – Labels, adhesives, and dirt are removed to improve purity.
Crushing and Washing – Bottles are shredded into flakes and washed thoroughly to remove any remaining contaminants.
Drying and Extrusion – Clean flakes are dried and melted into pellets or filaments for reuse.
Among these steps, label removal is a critical early process. Without it, the entire recycling chain suffers from contamination and lower product quality.
The Role of Label Removal in the Process
Although labels are a small part of the bottle, they can have a large impact on the recycling outcome. Labels are often made from materials that differ from the bottle itself—such as PVC, paper, or metallic foils—and may be adhered with chemical glues or heat-activated adhesives. If these labels remain attached during crushing and washing, they can:
Reduce the purity of plastic flakes
Introduce non-melting particles into extruders or molders
Cause discoloration or black spots in recycled plastic
Increase the cost of downstream filtration and separation
Manual label removal is time-consuming and impractical for industrial use. Thus, label remover machines are a must-have in modern plastic recycling lines.

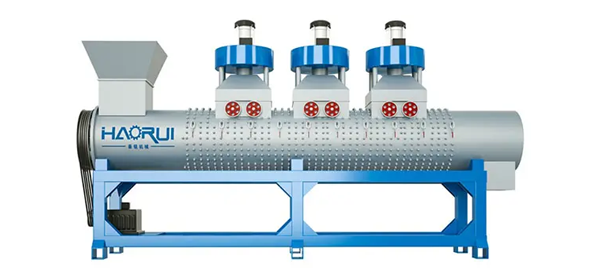

What Is a Label Remover Machine?
A Label Remover Machine is an industrial device designed to mechanically separate labels from plastic bottles before they enter the shredding and washing stages. It operates using high-speed rotation, friction, and air separation technologies to strip off labels while keeping the bottles mostly intact.
Basic Definition
In simple terms, a Label Remover Machine is a pre-processing unit in the recycling line that detaches surface contaminants—particularly labels and adhesives—from plastic bottles using mechanical force. Unlike shredders, it does not reduce bottle size, but instead prepares them for further cleaning and crushing.
This machine is particularly effective in high-throughput environments where thousands of bottles per hour need to be processed with minimal labor.
Types of Bottles It Applies To
Label Remover Machines are suitable for a wide variety of bottle types, including:
PET bottles: Commonly used for water, soft drinks, and juices. These are the most widely recycled plastic bottles and often have heat-sealed labels.
PP bottles: Found in food packaging, yogurt containers, and some household cleaners.
PE bottles: Used for shampoo, detergent, milk, and lotion packaging.
These machines are designed to accommodate bottles of various sizes, shapes, and thicknesses, ensuring versatility across different product lines.
How the Label Remover Machine Works
The operation of a label remover machine combines simplicity with engineering precision. The entire process is optimized for speed, durability, and low energy consumption while maintaining effectiveness in label separation.
Step-by-Step Working Principle
Bottle Feeding: Bottles are loaded into the machine via a conveyor or hopper. This can be done manually or automatically.
Friction Separation: The bottles pass into a rotating drum or cylinder fitted with blades or abrasion plates. As the drum spins, it agitates the bottles, and friction between the bottles and the inner surfaces causes the labels to peel off.
Air Separation: Once the labels are detached, they are much lighter than the bottles. An air blower system separates the labels from the bottles and directs them into a collection unit.
Clean Bottle Discharge: The bottles, now free of labels, exit the machine and move to the next stage—typically hot washing or crushing.
Mechanical Design and Components
The design of a label remover machine generally includes the following parts:
Rotating drum or shaft: The core of the system that provides high-speed agitation.
Abrasive plates or paddles: Positioned along the interior walls to increase friction.
Drive motor and gearbox: Controls the rotation speed and torque.
Dust and label suction fan: Collects removed labels and fine particles.
Noise-insulated shell: Encloses the machine for safety and reduced sound pollution.
Control panel: Allows operators to adjust machine speed, load, and cycle time.
Advanced versions may also include sensors, temperature controls, or automatic label separation systems for improved efficiency.
Pre-treatment and Post-treatment Stages
Pre-treatment: Bottles may be de-capped and compressed prior to entering the machine to improve label removal efficiency and feeding consistency.
Post-treatment: After labels are removed, bottles proceed to a hot or cold washing line, followed by crushing or flaking machines. This ensures all remaining residues and adhesives are cleaned off.
Importance in the Recycling Line
Impact on Flake Quality and Sorting
Label remover machines significantly influence the downstream quality of plastic flakes. By removing labels early in the process, recyclers achieve:
Higher purity rates in recycled plastic
Better transparency and color quality in flakes
Reduced cross-contamination between different plastic materials
Improved thermal processing performance during extrusion or molding
High-purity flakes can fetch better market prices and are more desirable for applications like food-grade packaging, textiles, and engineering plastics.
Operational Efficiency and Cost Reduction
Beyond improving product quality, label remover machines also reduce:
Labor costs, by automating a previously manual task
Downtime, since fewer foreign particles enter downstream machines
Maintenance needs, due to fewer contaminants causing wear on shredders and washers
For recyclers looking to scale operations or meet international standards (such as FDA or EU food-contact requirements), having a label removal stage is not just beneficial—it’s necessary.
Conclusion
The Label Remover Machine is a vital component in any modern plastic bottle recycling line. Though often overshadowed by more visible stages like shredding or washing, label removal is a foundational process that ensures purity, improves efficiency, and unlocks the economic value of recycled plastic.
By effectively removing labels from PET, PP, and PE bottles using mechanical friction and airflow separation, this machine enables recyclers to produce high-quality plastic flakes suitable for a wide range of industrial applications.
As the global demand for recycled materials grows and quality requirements become more stringent, investing in efficient label removal technology will not only help protect the environment but also deliver tangible business benefits.
If you are in the plastic recycling industry and seeking a reliable, high-efficiency Label Remover Machine, be sure to explore the solutions offered by Baoding Haorui Machinery Manufacturing Co., Ltd.. Our equipment is engineered to meet the highest standards of performance, energy efficiency, and operational reliability.
