Recycling LDPE, HDPE, and PP waste into high-quality pellets requires more than just melting plastic; it demands precision at every stage. With decades of experience in recycling solutions, HAORUI Machinery offers the expertise and technology to transform post-consumer and post-industrial waste into new feedstock. This article will show practical methods for handling these three polymers, and how the right pp pe recycle plastic granules making machine can achieve reliable, consistent results.
Key Differences Between LDPE, HDPE and PP
When designing a recycling line, it is important to first understand the nature of the polymers being processed. LDPE, HDPE, and PP have different melt characteristics, contamination tolerance, and end-use markets.
Melt Behavior
LDPE (Low-Density Polyethylene): Known for its flexibility and low crystallinity, LDPE has a relatively low melting point around 105–115°C. Its flow behavior makes it suitable for films and flexible packaging, but sensitive to overheating.
HDPE (High-Density Polyethylene): With a melting point around 130–135°C, HDPE is stiffer and more crystalline. It requires higher temperatures and stable extrusion conditions to avoid brittleness in pellets.
PP (Polypropylene): Typically melts at 160–170°C. It is lighter in density and requires precise temperature control to avoid degradation that causes yellowing or odor.
Contamination Tolerance
LDPE films often pick up dirt, adhesives, or ink from labels, requiring thorough washing.
HDPE containers are more rigid but can carry residual chemicals or oils.
PP, especially from automotive or household products, may contain fillers and requires stricter separation.
Common Applications
LDPE pellets: used in film blowing, liners, agricultural film.
HDPE pellets: applied in pipe extrusion, blow molding for bottles, and household goods.
PP pellets: favored for injection molding, fibers, and packaging components.
Understanding these traits is essential before setting up parameters on an ldpe hdpe pp plastic granules recycling machine. By aligning polymer properties with equipment capabilities, operators can extend machine life and achieve pellets that meet industrial standards.
Pretreatment Essentials: Sorting, Washing, Drying, De-labeling
The road to quality pellets begins long before the extruder is turned on. Pretreatment ensures that contaminants do not compromise pellet performance.
Sorting: Manual or automated systems separate LDPE film, HDPE rigid, and PP items. Even small cross-contamination can affect final MFI values and processing behavior.
Washing: Hot water and friction washers remove dirt, glue, and residues. Detergents are often added when processing post-consumer LDPE films to tackle oils and printing ink.
Drying: High-speed centrifugal dryers and thermal drying units are needed to bring moisture below 1%, as residual water can cause porosity in pellets.
De-labeling: Especially important for HDPE bottles, since labels and adhesives degrade during extrusion and cause black spots in pellets.
In many recycling plants, pretreatment is underestimated. However, HAORUI Machinery integrates advanced washing and drying systems into its lines, allowing continuous operation with minimal downtime. This step is crucial because high-quality input material always translates into high-quality pellets.
Machine Settings and Screw/Die Choices for Each Polymer

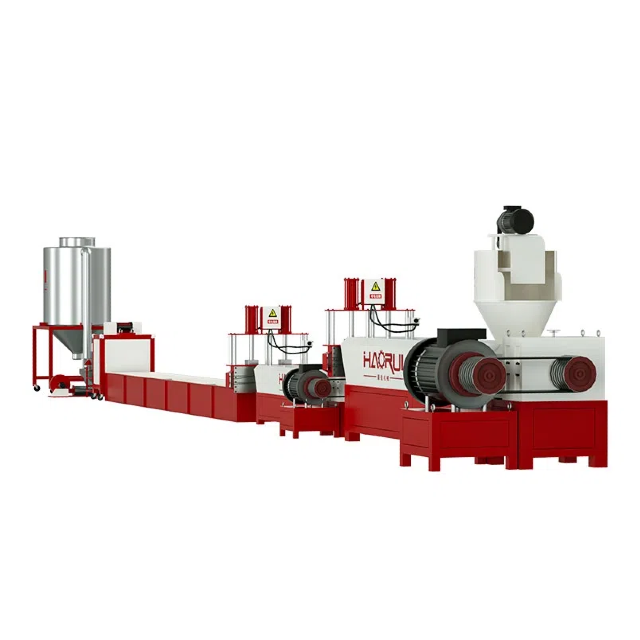

Once pretreatment is done, fine-tuning machine parameters is the key to producing stable, uniform pellets. A plastic recycling granulator machine allows customized setups depending on polymer type.
Temperature Profiles
LDPE: Lower zones around 160–180°C with gradual heating are best. Avoid overheating to reduce gel formation.
HDPE: Requires 190–220°C, but with a steady gradient to maintain rigidity without degradation.
PP: Operates at 220–250°C; zones must be precisely controlled to prevent odor and discoloration.
Screw Configuration
LDPE film waste benefits from longer screws with gentle compression to handle fluffy material.
HDPE rigid waste works best with screws featuring higher compression ratios to melt and homogenize dense flakes.
PP requires mixing elements and degassing sections to deal with fillers or volatiles.
Vacuum and Exhaust Needs
Degassing is vital for all three polymers. LDPE often traps moisture and air; HDPE may contain oil residues; PP can release volatile additives. Multi-stage vacuum vents maintain melt quality and pellet transparency.
Die Options
Strand pelletizing works for rigid HDPE and PP. Water-ring pelletizing is commonly used for LDPE film because it handles high throughput and provides uniform granules. Die-face cutting systems are also gaining popularity for processors who want easier pellet size control.
By selecting the right screw and die combination, processors ensure that the final pellets not only meet technical requirements but also remain competitive in the marketplace.
Pellet Quality Checks and Corrective Actions
Consistent pellet quality is what makes recycling profitable. Technical teams should monitor key indicators.
Density: Variations suggest contamination or cross-polymer mixing. Adjust sorting or cleaning if values deviate.
Melt Flow Index (MFI) Proxies: High MFI indicates chain degradation, often due to excess heat. Correct by lowering extrusion temperature or reducing screw speed.
Moisture Content: Should remain below 0.1%. Excess moisture leads to bubbles and weak points. Ensure dryers and vacuum vents are functioning properly.
Color and Odor: Yellowing shows overheating; odor suggests contamination or poor degassing. Solutions include better filtration screens and optimized venting.
In addition, more advanced facilities are now introducing in-line monitoring systems that test MFI or density during production, allowing real-time adjustments. HAORUI Machinery equips its pelletizing lines with automatic screen changers, vacuum systems, and melt pressure sensors to simplify these corrections and ensure batch stability.
Packing, Storage and Traceability Best Practices
After pelletizing, the handling process protects material value.
Packing: Pellets are usually packed in 25 kg bags or jumbo bags. Use anti-static liners to prevent dust and pellet fusion.
Storage: Keep in dry, ventilated warehouses. High humidity can reintroduce moisture and affect extrusion behavior later.
Traceability: Recording batch data such as source polymer, processing date, and machine parameters builds trust with buyers and ensures repeat orders.
Global buyers demand not just pellets but also documentation. With detailed traceability, recyclers can demonstrate compliance with standards like REACH or FDA, opening doors to higher-value applications. HAORUI Machinery’s lines are designed to integrate barcode systems and digital data logging for complete production tracking.
Quick Checklist for LDPE, HDPE and PP Pelletizing
Separate LDPE, HDPE, and PP at source.
Wash thoroughly to remove labels, oil, and dirt.
Dry flakes below 1% moisture.
Adjust temperature and screw settings to polymer type.
Use vacuum degassing to eliminate volatiles.
Monitor density, MFI, and moisture regularly.
Pack and label with batch information for traceability.
This simple sequence helps production supervisors avoid costly rework and assures consistent output.
Conclusion
Turning LDPE, HDPE, and PP waste into high-value pellets is achievable with careful pretreatment, precise machine adjustments, and rigorous quality checks. With over 30 years of manufacturing experience, HAORUI Machinery delivers recycling lines that handle flexible films, rigid plastics, and mixed waste streams effectively. Whether you need a ldpe hdpe pp plastic granules recycling machine for high-volume production or a customized line for specialized polymers, our team is ready to provide solutions tailored to your feedstock. To learn more about equipment options or request a trial run, contact us today.
