Functions of Fibre Grade PET Bottle Washing Line
A fibre grade PET bottle washing recycling line is responsible for converting post-consumer and post industrial PET bottles into clean,dry rPET flakes suitable for producing polyester staple fiber (PSF) and other textile-related products.
Components of Fibre Grade PET Bottle Washing Line

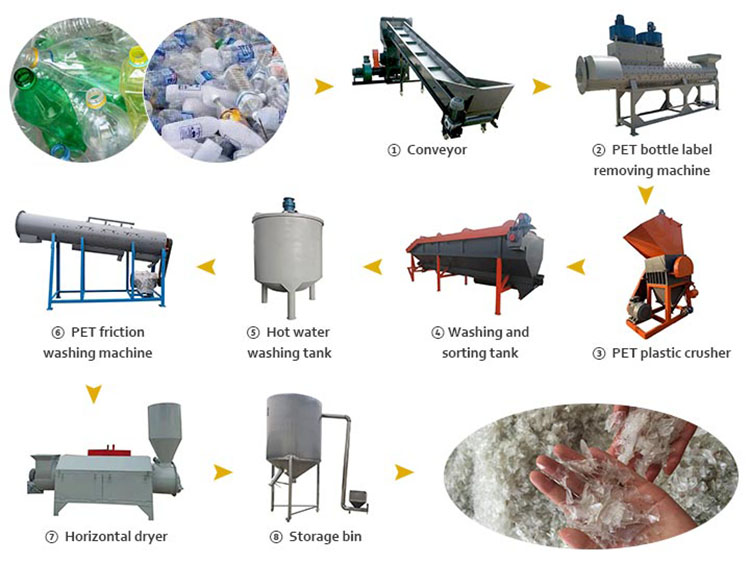

The PET bottle washing recycling line is composed of a series of interconnected machine and equipment,involving bale opener,trommel screen,PET bottle label remover machine,sorting platform,plastic crusher machine,washing system,including pre-washing,hot washing tank,high speed friction washer,floating/rinsing tanks,and dewatering and drying system,air classifier/color sorter,packing system.The functions and usages of these machine and equipment lists as follows:
Bale Opener/Breaker: Its function is to uncompress and separate the baled PET bottles,enabling smooth material flow.
Trommel Screen/Metal Detector: A trommel screen is a rotating screen for separating large contaminants.A metal detector is capable of identifying and removing ferrous impurities before crushing.
Label Remover Machine: It is a specialized machine using flat blades and sharp blades to remove labels from the bottles.
Sorting Platform: Optical sorting system is specialized in separating non-PET materials,different colors,or other foreign contaminants.
Plastic Crusher Machine: The bottles are crushed into smaller flakes (typically 12-16mm particle size) to facilitate more effective washing and drying.
Its function is to crush the plastic waste into smaller flakes(12-16mm particle size) to facilitate more effective washing and drying.
Washing System:
Pre-washing: It can remove initial dirt and surface adhesives.
Hot Washing Tank:
It can remove stubborn glue, oil,and other impurities using a caustic solution (like sodium hydroxide) and elevated temperatures.
Friction Washer: It uses high speed friction and water spray to provide intensive cleaning and decontamination.
Floating/Rinsing Tanks:It can separate PET flakes from floating contaminants like PP/PE caps and labels, followed by rinsing,utilizing water density differences.
Dewatering and Drying System: These machines can significantly reduce the moisture content of the flakes.
Air Classifier/Color Sorter: A zig-zag air classifier is used to remove fine dust and light materials,and an optical color sorter can ensure consistent flake color and purity.
Packing System:Its function is to pack automatically the final,clean rPET flakes into large bags or containers.
Features of Fibre Grade PET Bottle Washing Line
Our fibre grade PET bottle recycling machine has the features of high automation,efficient contaminant removal (including labels,caps, and PVC),a multi-stage process invovling crushing,washing,and drying,the ability to achieve low moisture and impurity levels in the final flakes,high-speed mechanical and thermal drying,and integrated system for sorting,label removal,and water treatment.
Usages of Fibre Grade PET Bottle Washing Line

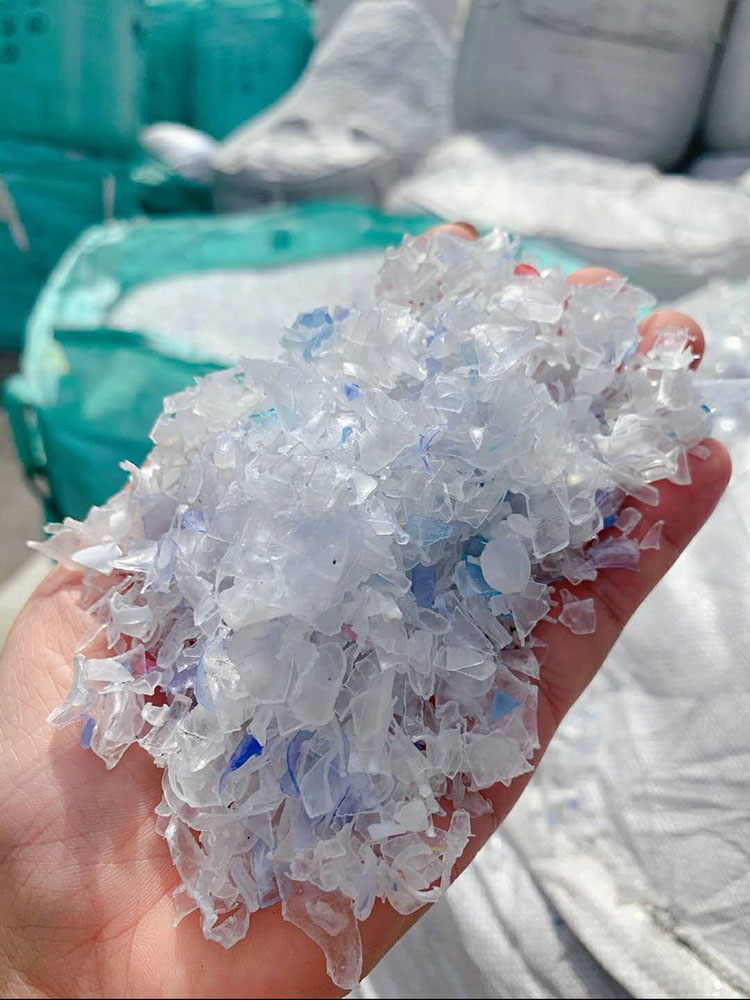

Above fibre grade PET recycling machine is used in transforming post consumer and post industrial PET bottles into clean,high-quality PET flakes for manufacturing polyester staple fiber.These flakes are the primary input for various textile products,including clothing,carpets, bedding,and stuffing for toys,as well as other polyester-based applications like strapping and filling materials.
