Competive Price Automatic 2000kg/h Plastic Sheet Recycling Equipment
Product Description:
PET bottle washing recycling line is responsible recycling PET waste bottle or sheet into bottle flakes.The process components of washing recycling line including crushing, washing and dry process.The recycling line is widely used in plastic industry field like PET waste bottle or sheet recycling.
Above clean flakes which are output of the PET bottle recycling machine can be used in recreating the polyester staple fiber, PET strap band, granules, PET transparent film and sheets,etc. The top class flakes produced by recycling machine can be used for blow ing bottles again.
This PET sheet & bottle washing line can make sure of the quality of final products are very clean due to the design of basing it on how dirty the flakes are.The capacity of the washing line ranges from 300kg/h to 2000kg/h.We can also customize the line according to the users' requirments.
Product Parameters:
Name | Motor Power(KW) | Dimension(mm) | Water Consuption(T/H) | Stainless Steel Standard(mm) |
Belt Conveyor | 2.2 | 3500*900*3000 | - | - |
Label scraping machine | 11 | 2600*1200*1800 | 0.6-1.0 | 3-5 |
Metal Detectory | 0.4 | 2200*1200*1500 | - | 3-5 |
Belt Conveyor | 2.2 | 3500*900*3000 | - | - |
Crusher | 37 | 2200*2200*3000 | 0.6-1.0 | - |
Srew Conveyor | 3 | 2800*800*2600 | - | 3-5 |
Floating washer | 3*2 | 5200*1700*2200 | 0.5-1.5 | 3-5 |
Srew Conveyor | 3 | 2800*800*2600 | - | 3-5 |
Steam Washer | 7.5 | 1800*1800*2700 | 0.5-1.5 | 3-5 |
Srew Conveyor | 3 | 2800*800*2600 | - | 3-5 |
Floating washer | 3*2 | 5200*1700*2200 | 0.5-1.5 | 3-5 |
Srew Conveyor | 3 | 2800*800*2600 | - | 3-5 |
Dewatering Machine | 5.5 | 800*2200*2200 | - | 5 |
Drying system | 11 | 3500*2200*2200 | - | 3-5 |
Label seperater | 4 | 800*1100*3800 | - | - |
Storage hopper | - | 1500*1500*3800 | - | - |
Electric element | - | 2000*450*1738 | - | - |
Sheet & Bottle Recycling Machine Parameters
Product Display:

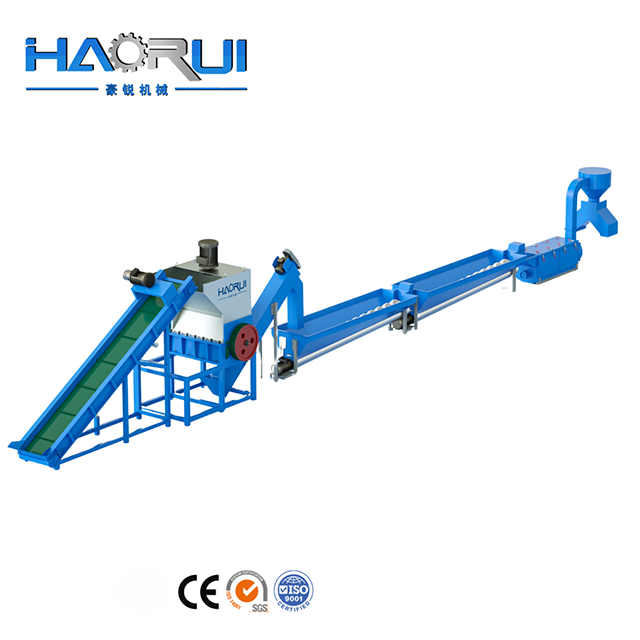

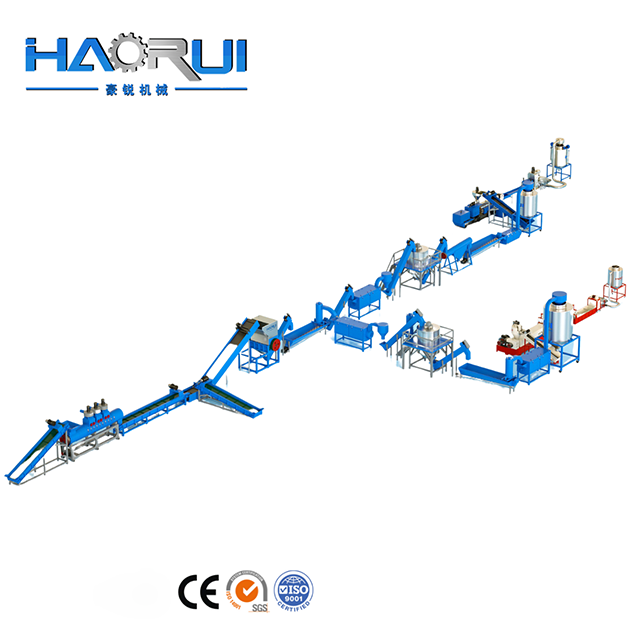

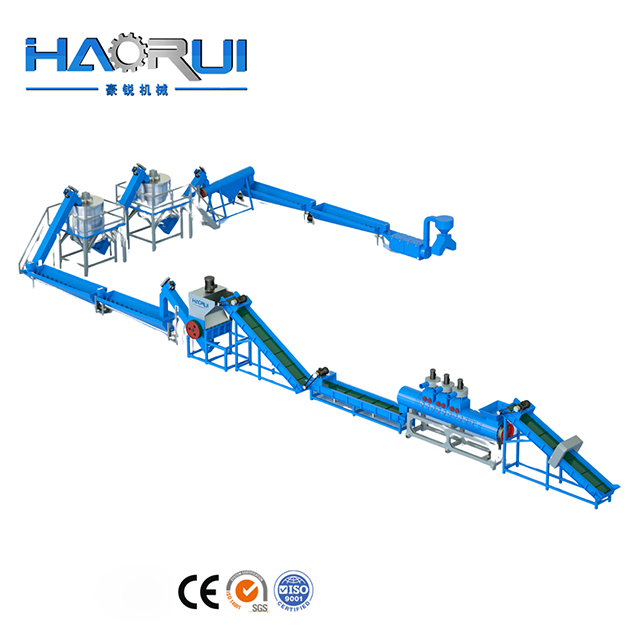

Sheet & Bottle Cleaning System
